Drawings

Turn millions of measured points into drawings your team can work from.

TruePoint Spatial translates the captured point cloud into existing-condition floor plans, elevations, and sections. The drawings give your team a clear, measured representation of the property to use as a starting point for planning and design.

Drawing examples

See the capture transform into drawings your team can use.

The captured point cloud can be translated into the 2D drawings your team works with every day, making the existing building and site easier to understand, reference, and bring into the design process.

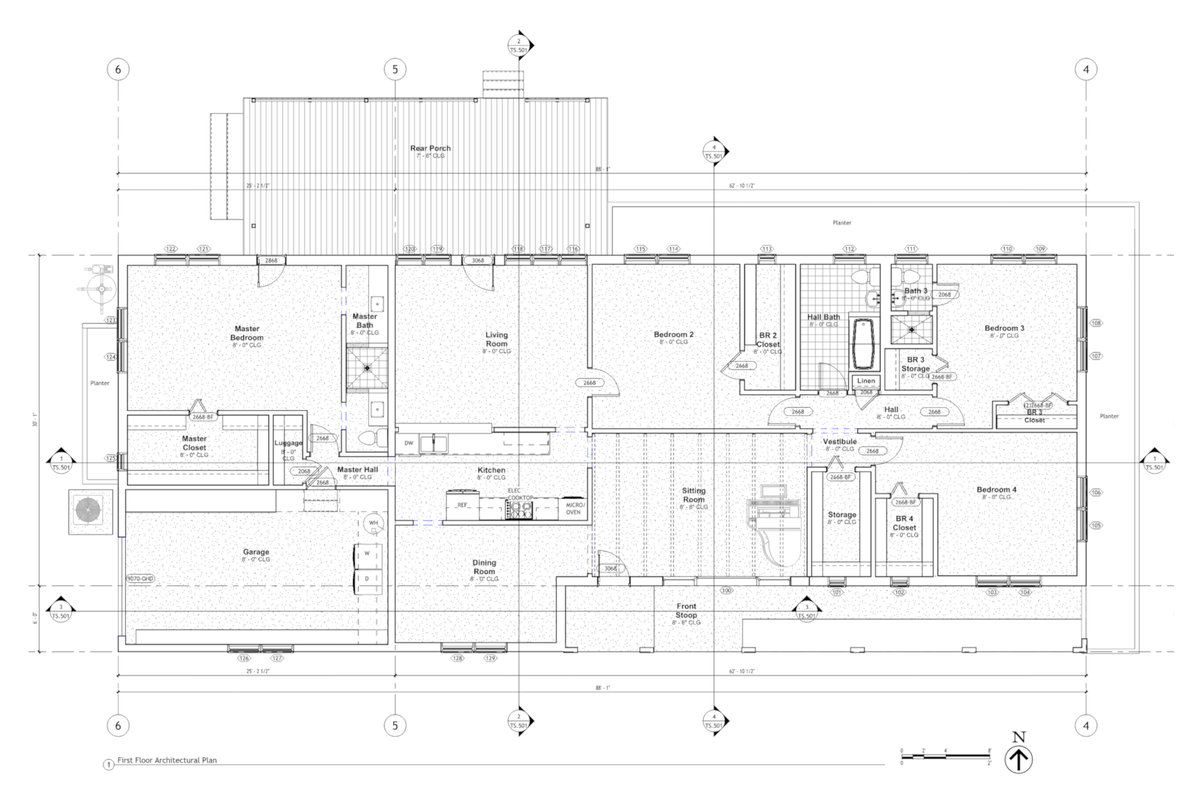

Dimensioned existing-condition floor plan documenting rooms, openings, fixtures, and exterior features.

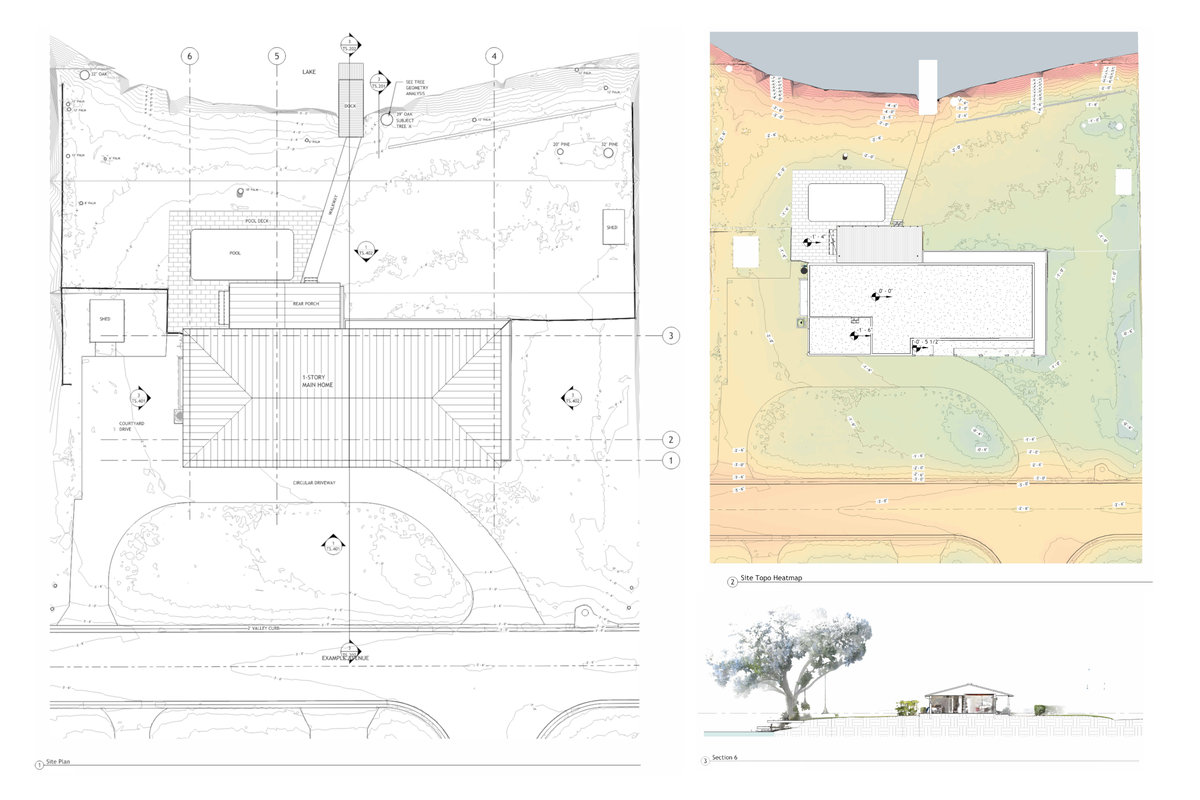

Existing-condition site plan with grade information, site features, a topographic view, and a site section.

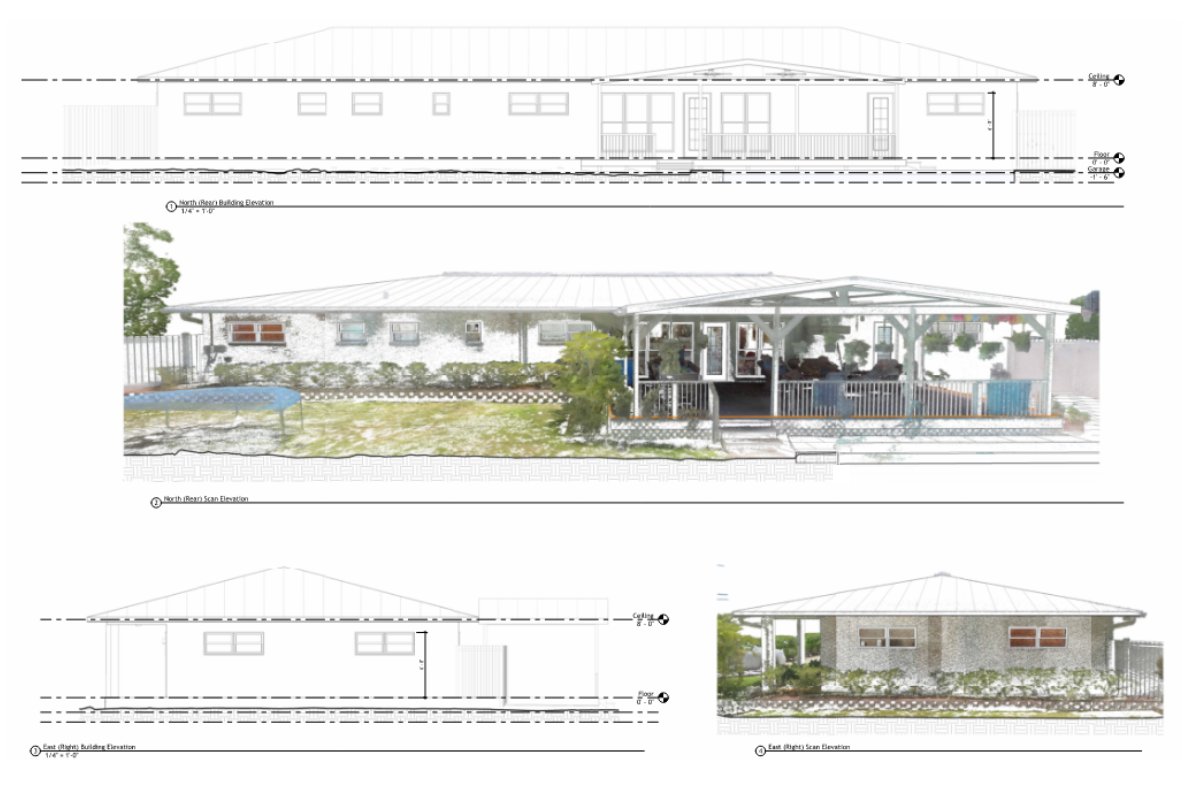

Existing-condition exterior elevations and point-cloud scan elevations of the same building views.

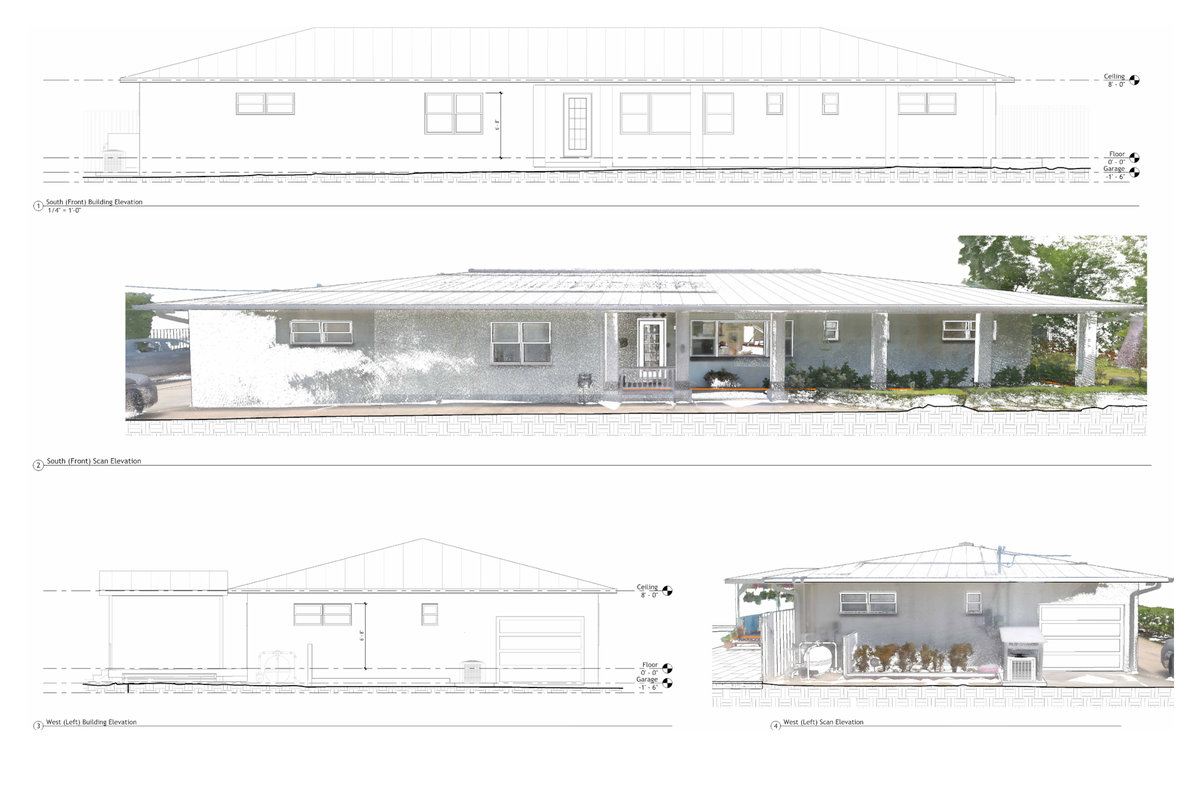

Existing-condition exterior elevations paired with point-cloud scan elevations of the same building.

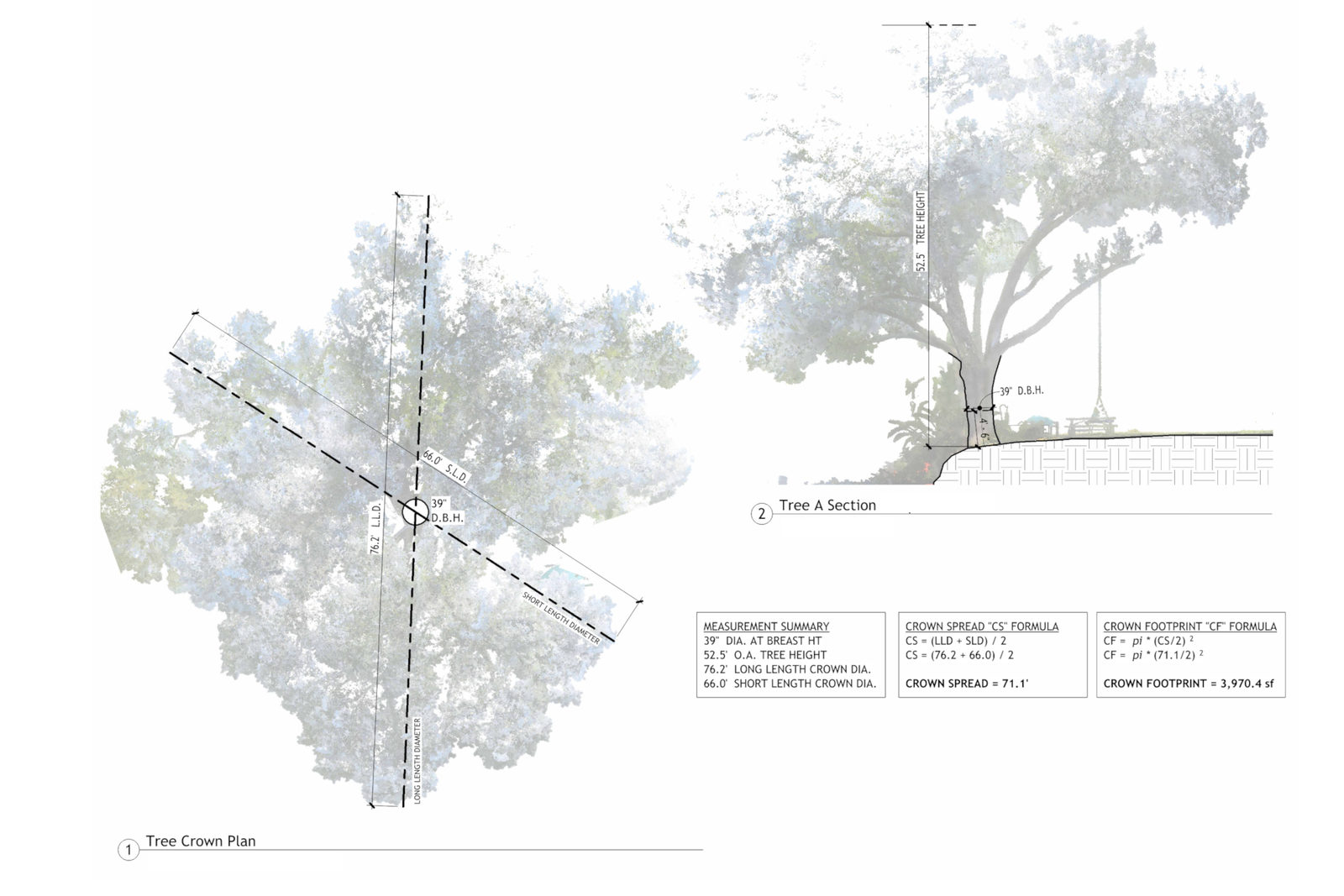

Tree geometry diagram showing measured canopy and sectional relationships.

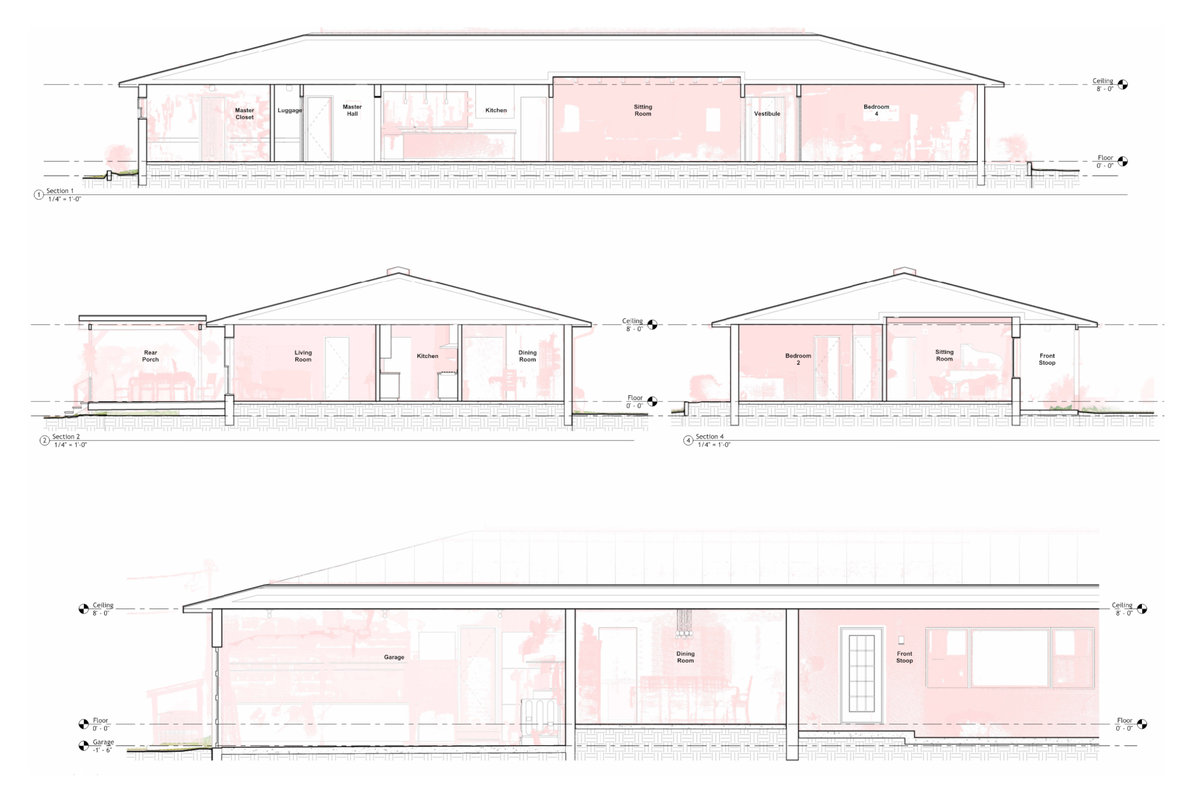

Existing-condition building sections with point-cloud data visible behind the architectural linework.

From Capture to Drawings

Give design a head start.

Translate the Capture into measured floor plans, elevations, and sections that are ready to work from. Your team gets a clearer picture of the existing property and a drawing set that can move directly into planning and design.

Design-ready files

Ready-to-use drawings.

Drawings are delivered in both PDF and DWG formats, giving your team a ready-to-use drawing set for review, planning, and continued design. Use the PDFs for easy reference and sharing, or bring the DWG files into your CAD workflow to keep the project moving.

Plan the drawings

Let's put the project on paper.

Send the project address and a few details about what you're planning. We'll help determine the right capture scope and drawing deliverables best suited to the project.
